Zimmermann Brake Disc for BMW 5 (E39) front right
Zimmermann Formular Z Brake Disc for BMW 5 (E39) front right
Partnumber: 150.3416.75
The Zimmermann Formula Z brake disc was designed with the aim of teaming simple installation with optimum braking effect under high mechanical and thermal load.
The compound brake disc developed by Zimmermann accommodates the increased demands incurred by engine tuning and optimised chassis structures.
Your advantages:
- Excellent deceleration action and no distortion of friction ring at high temperatures
- Substantial weight saving and therefore less unsprung mass
- Floating mounting enables radial expansion of the brake disc under relatively heavy loads, thus preventing shielding and increasing resistance to heat cracks
- "Hot spots" prevented by optimised design of ventilation channels
- 1:1 exchange of original disc possible
- Not subject to registration: general ABE certification supplied with disc
- No conversion required for brake tuning
suitable for:
BMW 5 (E39)
Typ: M5
build year: 01.10.1995 - 01.06.2003
KW / HP: 294/400
ccm: 4941
fuel type: Benzin
body: Stufenheck
Position: front right

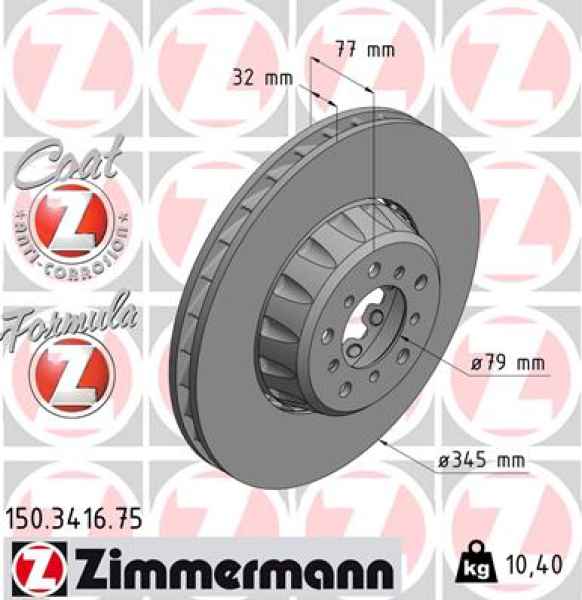

Brake Disc Specification:
brake discs art: belüftet
thickness (mm): 32
height: 77
information 2: Bremsscheibe zweiteilig
outer diameter (mm): 345
hole pitch / number: 10/5
bolt hole circle 1 Ø (mm): 120
min. thickness (mm): 30,4
hub bore Ø (mm): 79
quality: Alu-Topf schwimmend, Alu hub floating
Certification: eintragungsfrei
OE-Number (for comparison only): 3411 2 282 804, 3411 2 228 846, 24.0132-0162.2, 150.3416.00, 150.3416.20, 150.3416.50, 150.3416.52, 150.3416.70, HP58576, 17227, WD01036, ADC1746V
Price per piece - Brake discs are to be changed in pairs.
