Zimmermann Brake Disc for TOYOTA RAV 4 IV (_A4_) rear
Partnumber: 590.2801.20
Our aim is to supply our customers with high quality products at all times.
As a manufacturer of safety parts we are aware of our responsibilities and give precedence to product quality. All the brake discs and brake drums in our standard range of wearing parts are manufactured in dimensions and to a material quality specified by the automotive manufacturers.
Your advantages: - Extensive product range with over 1,000 different customer references
- Equivalent spare parts as defined by motor vehicle block exemption regulation KFZ-GVO (EU) 330/2010
- Consistently high product quality
- Reliable delivery service guaranteed by keeping adequate levels of stock
- Wide range of Standard Brake Discs with anti-corrosion protection Coat Z
- Ongoing development and expansion of range
- Over 50 years experience in brake disc manufacture
suitable for:
TOYOTA RAV 4 IV (_A4_)
Typ: 2.2 D 4WD (ALA49)
build year: 01.12.2012 -
KW / HP: 110/150
ccm: 2231
fuel type: Diesel
body: Geländewagen geschlossen
Position: rear

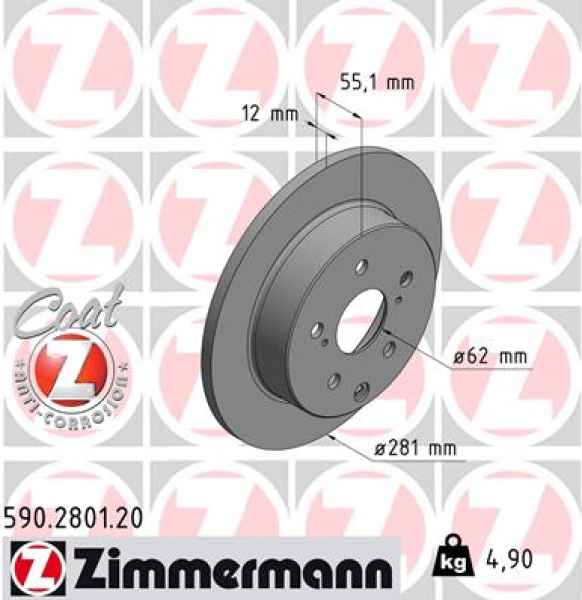

Brake Disc Specification:
brake discs art: Voll
thickness (mm): 12
height: 55,1
outer diameter (mm): 281
hole pitch / number: 8/5
bolt hole circle 1 Ø (mm): 114,3
min. thickness (mm): 10,5
hub bore Ø (mm): 62
Certification: eintragungsfrei
OE-Number (for comparison only): 42431-42060, 24.0112-0714.1, 412714, 54621, 0 986 479 419, 92162100, 92162103, 562601JC, 562601BC, J3312062, MDC1826, BDC5572, 29353, DF4829, 08.A429.11, DDF1846-1, 590.2801.00, 590.2801.50, 590.2801.52, BS7141, 81 92 9353, 8120 131008, BG4115, 61188.00, BV 7764, BBD4603, 23-1012C, 3145114, BS-8500, 25230, 30-15 523 0043/PD, DP-230, 78BD2882 C, V70-40011, HP58459, NBD1456, 17808, 17808 OE, T2030P, DF1152, BR-9494, AC3307D, WD01312, 61-02-230, 142.1303, HPD 1303, N3312060, BD-2882, 8DD 355 118-881, 4863201209, 37-1147, 6048294, 14973 V, 61188 00, 18153145114, 19-1618, 800-1012C, D61188.00, BDR2422.10, ADC01137, T331A52, 0993-0602, IBP-1298, 61230, 103101, C42052ABE, CBR354, BD1428
Price per piece - Brake discs are to be changed in pairs.
Zimmermann BS TOYOTA Coat Z
