Zimmermann Brake Disc for VW PASSAT Variant (3A5, 35I) rear
Partnumber: 600.3219.20
Our aim is to supply our customers with high quality products at all times.
As a manufacturer of safety parts we are aware of our responsibilities and give precedence to product quality. All the brake discs and brake drums in our standard range of wearing parts are manufactured in dimensions and to a material quality specified by the automotive manufacturers.
Your advantages: - Extensive product range with over 1,000 different customer references
- Equivalent spare parts as defined by motor vehicle block exemption regulation KFZ-GVO (EU) 330/2010
- Consistently high product quality
- Reliable delivery service guaranteed by keeping adequate levels of stock
- Wide range of Standard Brake Discs with anti-corrosion protection Coat Z
- Ongoing development and expansion of range
- Over 50 years experience in brake disc manufacture
suitable for:
VW PASSAT Variant (3A5, 35I)
Typ: 2.0
build year: 01.03.1988 - 01.08.1996
KW / HP: 79/107
ccm: 1984
fuel type: Benzin
body: Kombi
Position: rear

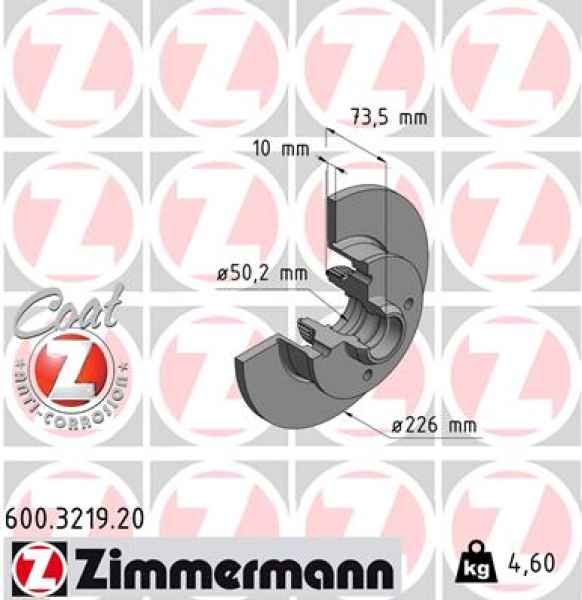

Brake Disc Specification:
brake discs art: Voll
thickness (mm): 10
height: 71,5
information 2: mit ABS-Sensorring
outer diameter (mm): 226
hole pitch / number: 4/4
bolt hole circle 1 Ø (mm): 100
min. thickness (mm): 8
hub bore 1 Ø (mm): 39,8
hub bore 2 Ø (mm): 50,3
Certification: eintragungsfrei
OE-Number (for comparison only): 1J0 614 149, 357 615 601, 24.0110-0111.1, 24.0110-0275.2, 186288, 0 986 478 331, 10212 03, 92041800, 92041803, 92154200, 92154203, 562372J, 561460B, 562372B, 360406048300, MDC1999, MDC502, BDC3712, 09074, DF1529, 08.5005.75, DDF137, 600.3219.00, 600.3219.50, 600.3219.52, BS3712, 30 90 9074, 8120 10104, 14.0623, 14.0623N, BG2389, 230846, 14133 E, 6024.00, X14133, BS 7369, 23-0117, 2047121, 209935, BS-0240, 15772, 115 523 1005, 115 523 1005/PD, 78BD3393-1, V10-40033, T0620221, HP57193, 15962, 15962 OE, BAR10111, DF574, 07.35.095, AC2058D, D2058, 142.724, HPD 724, 8DD 355 113-461, 9004358J, 615260005ALT, 37-0315, 6015294, X 14133, 6024 00, 5159, 18152047121, 1815204726, 1815209935, 103 526, 19-3393, 800-117, D6024.00, 628.0652, 306150601357, 01.05.06.107201, BDA1583.10, BDR1583.10, 98075, C4W002ABE, PRD5102
Price per piece - Brake discs are to be changed in pairs.
Zimmermann BS VAG mit ABS-Sensor-Ring Coat Z
