Zimmermann Coat Z Sport Brake Disc for FORD FOCUS (DAW, DBW) front
Partnumber: 250.1393.52
The Zimmermann Sport Brake Disc was developed as a result of experience of brake discs in series-production vehicles in connection with racing.
The brake system is optimised by combining high-quality cast materials with a perforated braking surface.
Your advantages: - Better wet braking performance by permanent expulsion of brake dust and water
- Sporty look
- Because of the anti-corrosion protection Coat Z better finish - especially of the hub and the outer diameter
- Noticeable improvement in the braking power of your car
- Prevention of brake fade
- Countersinking of holes doubles up as wear indicator
- 1:1 exchange of original disc possible
- no additional adaptions necessary
Coat Z - - No formation of rust at the hub and herewith improved visual appearance
- Immediate functional capability without removal of the coating before mounting
- German production meeting the requirements of actual Quality Management Systems
- Well-known, highest Zimmermann-Product-Quality
suitable for:
FORD FOCUS (DAW, DBW)
Typ: ST170
build year: 01.03.1998 - 01.11.2004
KW / HP: 127/173
ccm: 1988
fuel type: Benzin
body: Schrägheck
Position: front

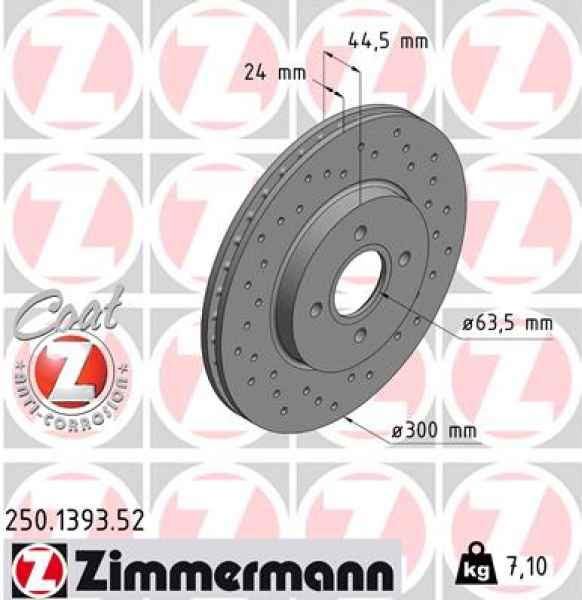

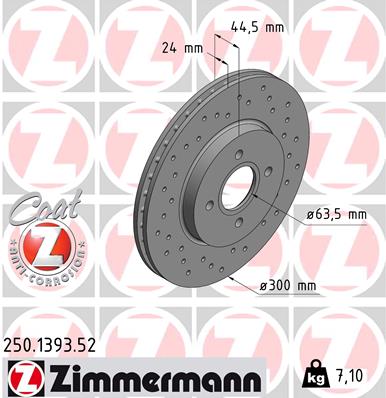

Brake Disc Specification:
brake discs art: Innenbelüftet, Gelocht
thickness (mm): 24
height: 44,5
outer diameter (mm): 300
hole pitch / number: 4/4
bolt hole circle 1 Ø (mm): 108
min. thickness (mm): 22,2
hub bore Ø (mm): 63,5
Certification: eintragungsfrei
OE-Number (for comparison only): 4 410 264, 4 328 921, 2M5V-1125-AA, 2M5V-1125-AB, 24.0124-0198.1, 197376, 0 986 479 048, 92139900, 92139903, 562206J, 562206JC, 360406063300, MDC1559, BDC5316, 43941, DF4250, 09.A275.10, FD.180.000, DDF1195-1, DDF1195C, 250.1393.00, 250.1393.20, 250.1393.50, BS7401, 50 94 3941, 8120 16152, BG3537, BG3537C, 231099, BS 8624, BN-1181, BN-1181E, BBD4420, 23-1673C, 202567, 312567, BS-8138, 6806.10, V25-80020, NBD1214, 17420, F1005V, DF1004, 142.225, HPD 225, DSK2185, 8DD 355 112-091, 6042501, 24999, 38448, 6806 10, BD1004, 1815202567, 19-7970, 800-1673C, D6806.10, 628.2033, 53.110.15100, 53.111.15100, BDA2306.20, BDR2306.20, ADC1220V, AND6540, 305104, C3G047ABE, WGR1195-1, BD2069, PRD2476, 5815202567
Price per piece - Brake discs are to be changed in pairs.
